Proportional dosers

Product description

• Dosing range: 0.15 … 5.5%
• Pressure range: 0.3 … 6 bar, depending on model
• Water flow rate: 5 ... 700 l/h
• Dosing feed: 0.0075 ... 38.5 l/h
• Dosing: proportional, e.g. a setting of 1% corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 5 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.3 … 1.4 bar
• Maximum temperature of the drive water: 40 °C

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The working solution produced in this way flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure.

Areas of application

• Disinfection, cleaning, fertilisation, pest control, lubrication, pH/TH regulation, flocculation, car washing
• Environment, hygiene, water treatment, food industry, car washing, metalworking, printing industry, horticulture

Product description

• Dosing range: 0.07 … 10 %
• Pressure range: 0.3 … 6 bar, depending on model
• Water flow rate: 10 … 2500 l/h
• Dosing feed: 0.007 … 200 l/h
• Dosing: proportional, e.g. setting to 1 % corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 5 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.3 … 1.9 bar

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the driving water. The working solution produced in this way flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure.

Areas of application

• Disinfection, cleaning, fertilisation, pest control, lubrication, pH/TDS regulation, flocculation, car washing
• Environment, hygiene, water treatment, food industry, car washing, metalworking, printing industry, horticulture

Product description

• Dosing range: 0.03 … 25 %
• Pressure range: 0.3 … 6 bar, depending on model
• Water flow rate: 10 … 3000 l/h
• Dosing feed: 0.003 … 300 l/h
• Dosing: proportional, e.g. setting to 1% corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 10 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.2 … 2.3 bar

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The resulting working solution flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure

Areas of application

• Disinfection, cleaning, fertilisation, pest control, lubrication, pH/TH regulation, flocculation, car washing
• Environment, hygiene, water treatment, food industry, car washing, metalworking, printing industry, horticulture

Product description

• Dosing range: 1 … 10 %
• Pressure range: 0.5 … 6 bar, depending on model
• Water flow rate: 10 … 3000 l/h
• Dosing feed: 0.1 … 300 l/h
• Dosing: proportional, e.g. setting to 1% corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 10 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.2 … 2.3 bar

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The resulting working solution flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure

Applications

• Metalworking. The proportional dosing unit is connected directly to the water supply and uses water pressure alone as its driving force. The unit thus dispenses a wide variety of concentrates directly into the reservoirs of traditional or CNC machine tools. Thanks to its precision and reliability, any incorrect dosing is ruled out, thereby preventing errors in the production of mixtures (emulsions and solutions).
• The D3IL10 produces a better emulsion thanks to the integrated emulsifying disc (1).

Product description

• Dosing range: 0.03 … 25 %
• Pressure range: 0.3 … 6 bar, depending on model
• Water flow rate: 10 … 3000 l/h
• Dosing feed: 0.003 … 300 l/h
• Maximum drive water temperature: 70 °C
• Dosing: proportional, e.g. setting to 1 % corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 10 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.2 … 2.3 bar
• PVDF housing

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The resulting working solution flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure

Areas of application

• Disinfection, cleaning, fertilisation, pest control, lubrication, pH/TH regulation, flocculation, car washing
• Environment, hygiene, water treatment, food industry, car washing, metalworking, printing industry, horticulture

Product description

• Dosing range: 0.03 ... 8 %
• Pressure range: 0.5 ... 5 bar, depending on model
• Water flow rate: 100 ... 4500 l/h
• Dosing feed: 0.033 ... 360 l/h
• Dosing: proportional, e.g. setting to 1% corresponds to a dosing ratio of 1 : 100
• Typical dosing tolerance: ± 10 %
• Repeatability: ± 3 % (API675)
• Pressure drop: 0.2 ... 2.3 bar

How it works

Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The resulting working solution flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure

Areas of application

• Disinfection, cleaning, fertilisation, pest control, lubrication, pH/TH regulation, flocculation, car washing
• Environment, hygiene, water treatment, food industry, car washing, metalworking, printing industry, horticulture

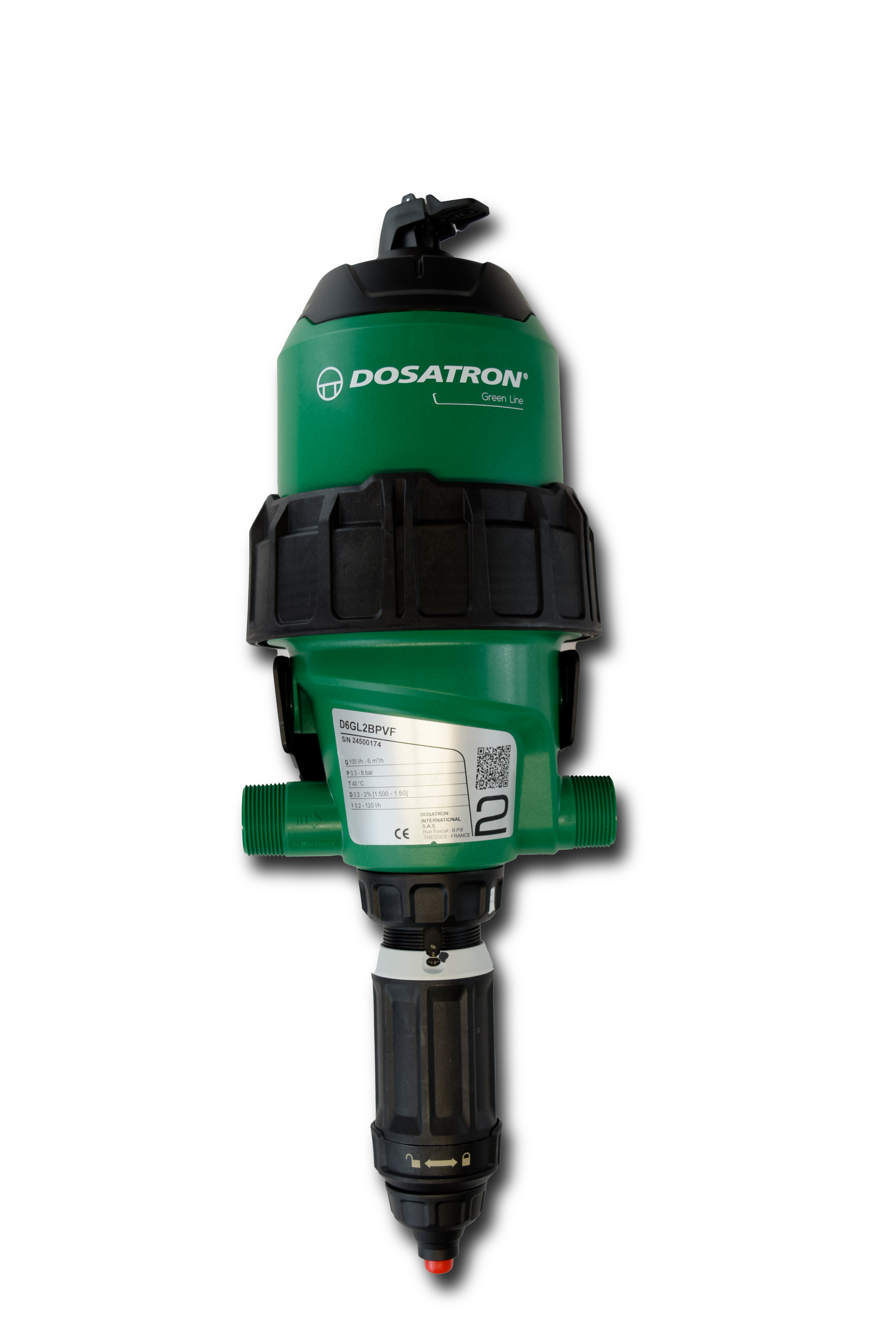

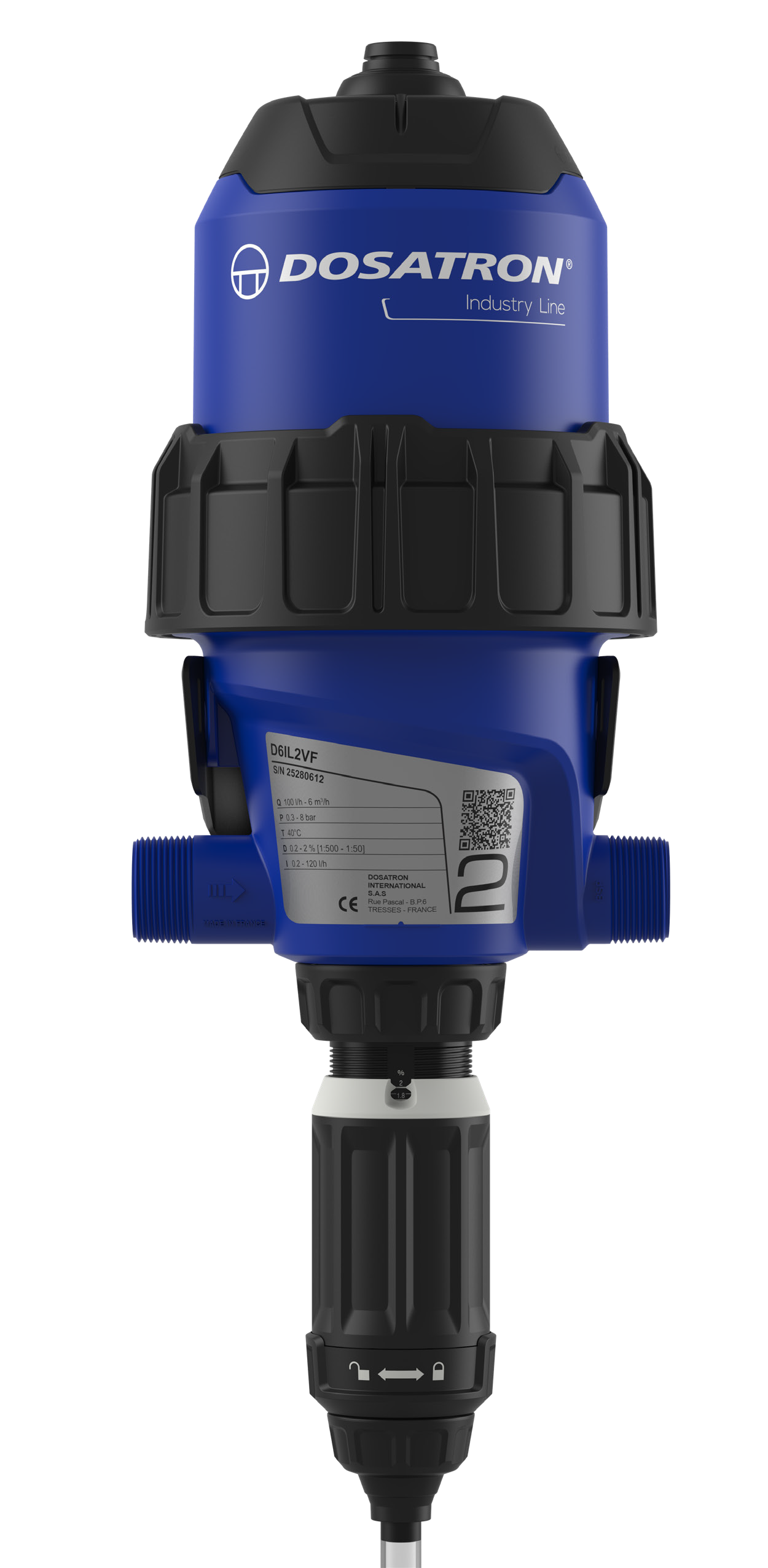

Product description:

• Dosing range: 0.2 … 2 %
• Pressure range: 0.3 … 8 bar, depending on model
• Water flow rate: 100 … 6000 l/h
• Dosing rate: 0.5 … 5 ml/h
• Dosing: proportional, e.g. set to 1%
  (corresponds to a dosing ratio of 1 : 100)
• Pressure drop: 0.2 … 2.3 bar Ø Dosing tolerance: ±10 %
• Repeatability: ±3 % (API675)
• Pressure drop: 0.2 … 2.3 bar
• Maximum temperature of the drive water: 40 °C
• Minimum temperature of the drive water: 5 °C
• Injection at inlet
• Connection: 1¼" BSP male thread Ø 33 x 42 mm
• Drive:
  – hydraulic differential piston motor,
  – self-priming
• Seals:
  – VF (acid, pH 1 ... 7)
• Maximum suction head: 4 m

How it works

The tips of the notches on the adjustment ring point to the corresponding value. The amount of concentrate fed in is proportional to the volume of water flowing through the dosing unit: e.g.: setting to 1% = 1 : 100 = 1 volume of concentrate + 100 volumes of water.

Areas of application

Agriculture and horticulture (fertilisation, plant protection, pest control)

Product description:

• Dosing range: 0.03 … 5 %
• Pressure range: 0.3 … 8 bar, depending on model
• Water flow rate: 500 … 9000 l/h
• Dosing feed: 0.15 … 450 l/h
• Dosing: proportional, e.g. set to 1% (corresponds to a dosing ratio of 1 : 100)
• Typical dosing tolerance: ±10 %
• Repeatability: ±3% (API675)
• Pressure drop: 0.2 … 2.3 bar
• Maximum temperature of the drive water: 40 °C
• Minimum temperature of the drive water: 5 °C
• Built-in mixing chamber
• Drive:
  – hydraulic differential piston motor,
  – self-priming
• Seals:
  – VF (acid, pH 1 ... 7)
• Maximum suction head: 4 m

How it works

The tips of the notches on the adjustment ring point to the corresponding value. The amount of concentrate fed in is proportional to the volume of water flowing through the dosing unit: e.g.: setting to 1% = 1 : 100 = 1 volume of concentrate + 100 volumes of water.

Areas of application

Agriculture and horticulture (fertilisation, plant protection, pest control)

Product description:

• Dosing range: 0.05 … 0.5 %
• Pressure range: 2.5 … 6 bar, depending on model
• Water flow rate: 100 … 1000 l/h
• Dosing rate: 0.5 … 5 ml/h
• Dosing: proportional, e.g. set to 1%
• (corresponds to a dosing ratio of 1 : 100)
• Pressure drop: 0.2 … 2.3 bar
• Maximum temperature of the drive water: 40 °C
• Minimum temperature of the drive water: 5 °C
• Built-in mixing chamber
• Drive:
  – hydraulic differential piston motor,
  – self-priming
• Seals:
  – VF (acid, pH 1 ... 7)
• Maximum suction head: 4 m

Principle of operation:
Connected to the water mains, the dosing unit uses water pressure alone as its driving force. In this way, it draws in the concentrate, doses it to the desired percentage and mixes it with the water supply. The working solution produced in this way flows through the dosing unit. The quantity of product to be dosed is proportional to the water flow rate, even in the event of fluctuations in flow rate or pressure.

Areas of application:

• Horticulture (fertilisation, plant protection, pest control), Not suitable for commercial use in large-scale horticulture

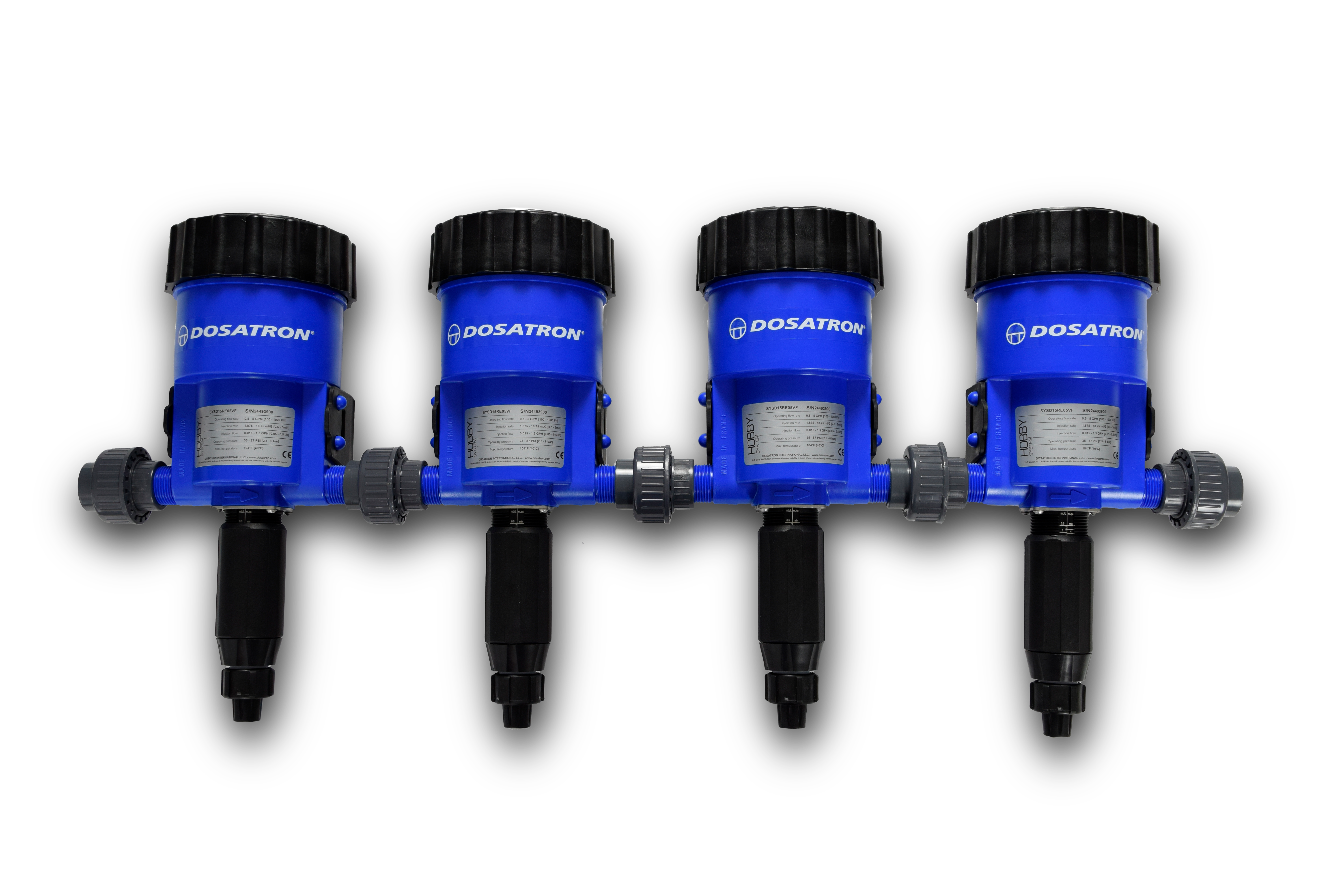

• The revolutionary Hobby System is a modular multi-pump system that is ideal for use in the home and for hobby gardeners. The Hobby System uses water-driven dosing technology to deliver the optimal mix of nutrients and additives directly to your plants.
